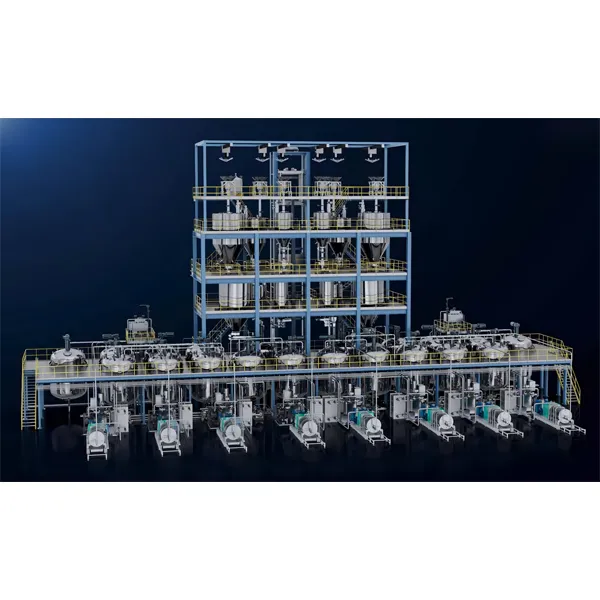

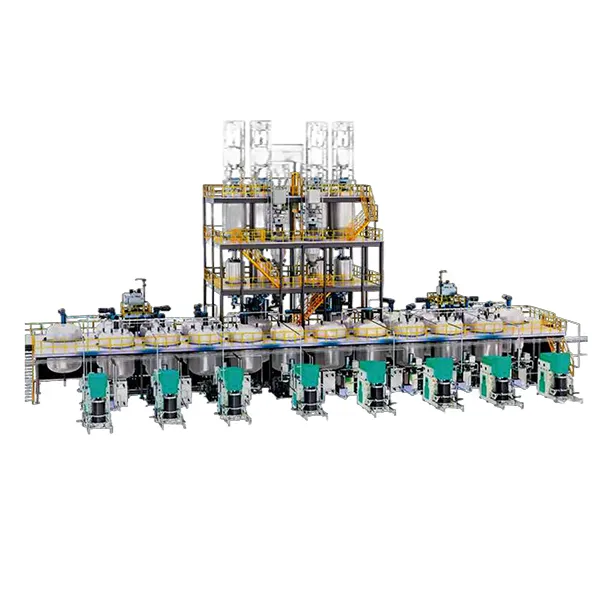

Advantages of Vertical Production Line and Sand Mill

Features of Vertical Production Line and Sand Mill

• Low Equipment Cost: The vertical sand mill omits the rough grinding step, reducing the number of equipment and tanks, thereby lowering equipment configuration costs.

• Higher Production Capacity: The vertical nano sand mill has an effective working time of up to 350 days and an annual output of 119,700 tons. In comparison, the horizontal sand mill has an annual output of 102,600 tons because the screen needs to be cleaned every month. The vertical sand mill line can produce an additional 17,100 tons per year and requires maintenance only twice a year.

• Reduce Labor and Consumable Costs: The horizontal production line requires frequent disassembly and maintenance, while the vertical sand mill production line requires only one person to operate because it is not easy to block materials. It saves 400,000 yuan in labor and consumable costs every year.

• Reduce the Cost of Zirconium Beads: Horizontal sand mill needs to eliminate 20% of zirconium beads every year, with a cost of 2.4 million yuan. The dual-power nano sand mill in the vertical production line does not require screening, the elimination rate is only 1%, and the cost is 120,000 yuan. The cost of zirconium beads can be saved by 2.28 million yuan every year.

• Reduce Energy Consumption Costs: The total power of the coarse grinder and coarse grinding tank of the horizontal production line is 2,776KW, and the annual power consumption is 12,991,680 kWh. The vertical sand mill production line does not require these equipment and can save 12,991,680 kilowatt hours of electricity every year.

Specifications of Vertical Production Line and Sand Mill
