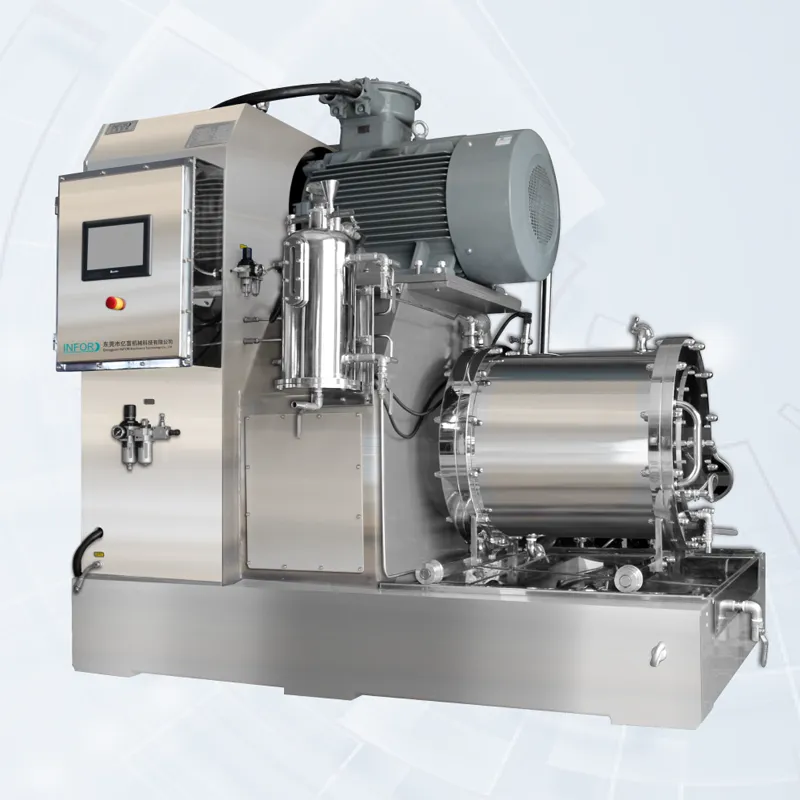

Carbon Nanotube Slurry Nano Sand Mill Series

Special sand mill for carbon nanotube slurry can use turbine, rod pin, and lamination The structure is suitable for small-scale test, pilot test and production line production. It has the characteristics of high efficiency, no material clogging and even dispersion. It has been used in many large enterprises in the industry, and has been adopted by many scientific research institutes and universities. It has nearly a hundred large-scale cooperation cases. The product operates stably and sells well overseas.

Features of Carbon Nanotube Slurry Nano Sand Mill Series

1. Adopt an external all-inclusive stainless steel structure to prevent materials from corroding the equipment during the production process

2. Adopt a special customized sealing structure, safe and leak-free

3. Special dynamic screen discharging ensures large flow and improves production efficiency

4 , designed for The rotor structure designed with carbon nanotube slurry has high efficiency and low energy consumption

5. On the basis of the same efficiency as other equipment, the NCT-90 nano sand mill occupies a smaller area

6. The simplified fuselage is explosion-proof and cracking treatment to ensure that the grinding process is safe and pollution-free

7. PLC control system, which can be configured with intelligent production lines to meet different customer needs

Model / Parameter	Motor power (Kw)	Grinding chamber volume (L)	Minimum production batch (L)	Cooling water consumption (㎡/h)	Dispersing shaft speed (r/min)	Weight (kg)
NCT-15	22	15	25	1-2	0-1200	2500
NCT-30	45	30	50	2-3	0-1200	2800
NCT-90	90	90	150	3-6	0-750	4500
NCT-150	132-160	150	300	5-8	4000	6500
