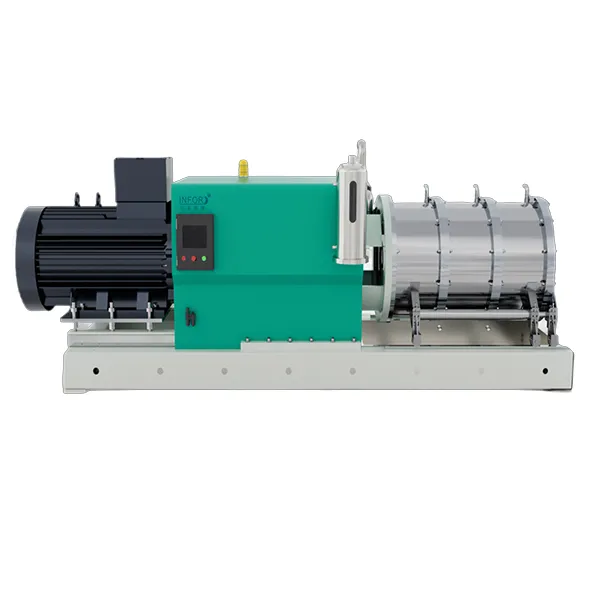

Direct Drive Sand Mill Series

Features of Direct Drive Sand Mill Series

• 1. Adopting a direct drive structure, the design is more optimized and concise

• 2. Solve the industry pain points of sand mills that are difficult to clean after use and have high failure rates

• 3. The special and effective structural design improves the grinding efficiency and reduces the operation failure rate to almost is zero

• 4. Equipped with a permanent magnet synchronous motor, which has the characteristics of strong overload capacity, high power factor, high precision, and low noise decibels.

• 5. Equipped with dual carbon intelligent monitoring system and intelligent large screen for full monitoring.

• 6. Rod-needle disperser, with high grinding efficiency and narrow particle size distribution

• 7. Adopt self-developed high-performance double-end mechanical seal, which is safe, reliable and leak-free

• 8. The inlet and outlet pipes adopt a double-layer cooling structure, with the inner layer passing through the material and the outer layer Layer-through cold water cooling, large cooling area, good cooling effect, jacket cooling, mechanical seal cooling;

• 9. The pressure sensor can adjust the pressure in the cavity according to different materials. When the pressure is too high, it can automatically alarm and stop, making grinding safer and more reliable.

• 10. Temperature sensor. The temperature can be set by yourself. If the temperature is too high, it will automatically alarm and shut down.

Specifications of Direct Drive Sand Mill Series
