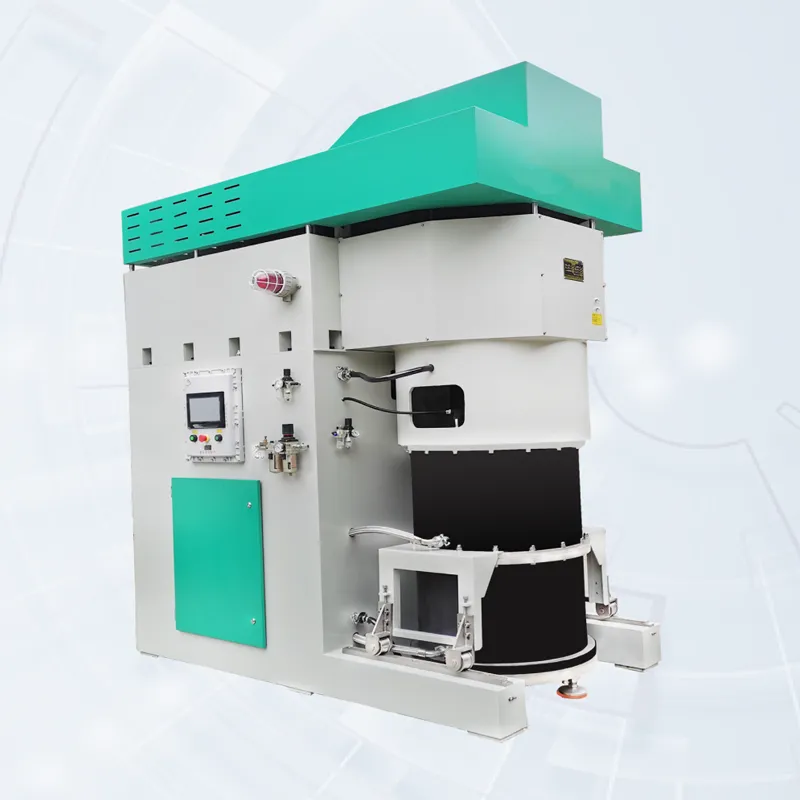

LPM series sand mills are specially designed and optimized, dedicated to 0.03-0.3mm Reliable application of tiny grinding beads. Innovative concepts and specially designed functional components can achieve extremely high production capacity and a perfect separation system without screens and never clogging.
1. Motor: permanent magnet synchronous motor/three-phase asynchronous motor
2. Transmission mode: The motor drives the pulley for transmission
3. Discharging method: dynamic centrifugal discharging, no screen
4. Grinding and dispersion structure: Rod pin type
5. Cooling method: The grinding barrel is cooled by double-layer cooling water circulation, and the machine seal coolant circulates Cooling
6. Grinding media: zirconia balls 0.1-2.0
7. Grinding speed: 0-650r/min, frequency conversion speed regulation
8. Control system: independent human-machine interface Control, with material temperature, pressure control, cooling water temperature; mechanical seal liquid level pressure, temperature, liquid level control ;Real-time monitoring of motor temperature;
9. Sound and light prompts: When a sensor detects an abnormality in the grinding machine, the grinding machine will stop running, the sound and light alarm will alarm, and detailed alarm information will be prompted on the human-machine interface
10. Grinding chamber: inner cylinder silicon carbide
11, features: no mesh separation, narrow particle size distribution, high efficiency, ultra-low energy consumption
| Model / Parameter | Motor power (Kw) | Grinding chamber volume (L) | Grinding media (mm) | feed flow (L/h) | Cooling water consumption (㎡/h) | Weight (kg) |
| LPM-1 | 7.5 | 1 | 0.05-2.0 | 150 | 0.6 | 380 |
| LPM-6 | 15 | 6 | 0.05-2.0 | 400 | 1.5 | 1300 |
| LPM-15 | 22 | 15 | 0.05-2.0 | 1200 | 2 | 2100 |
| LPM-30 | 45 | 30 | 0.05-2.0 | 1500 | 2.5 | 2200 |
| LPM-60 | 90 | 60 | 0.05-2.0 | 2000 | 4 | 4500 |
| LPM-150 | 160 | 150 | 0.05-2.0 | 4000 | 6 | 7500 |
| LPM-400 | 355 | 400 | 0.05-2.0 | 6000 | 10 | 9500 |
| LPM-1000 | 650 | 1000 | 0.1-2.0 | 8000 | 18 | 22000 |
