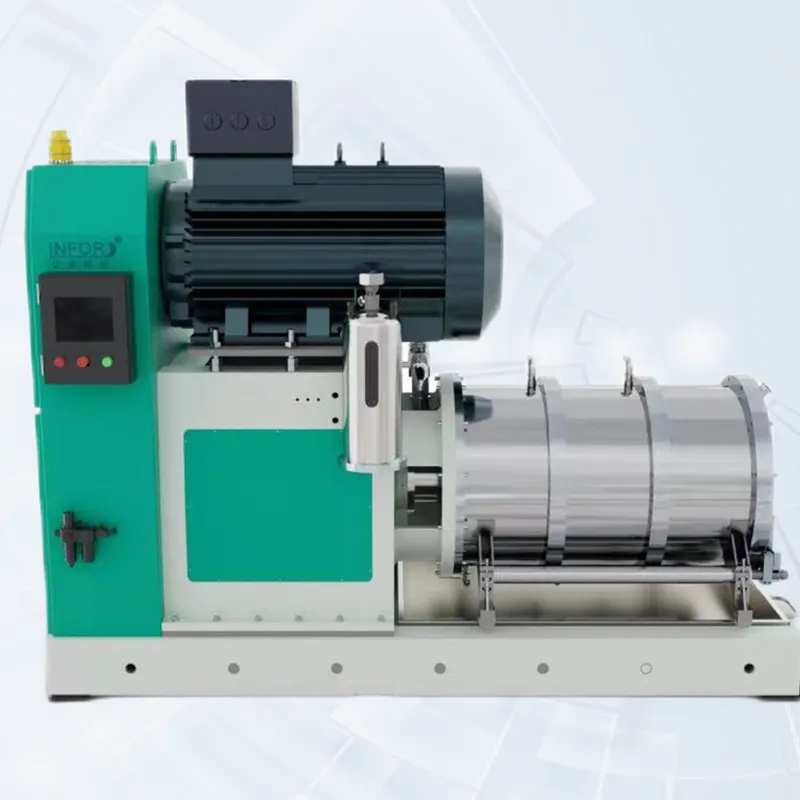

NCP series rod pin nano sand mill has been successfully used in various nanomaterial industries, so It has been highly praised by the industry for its outstanding advantages such as large traffic volume and high efficiency.
1. Motor: permanent magnet synchronous motor/three-phase asynchronous motor
2. Transmission mode: The motor drives the pulley for transmission
3. Discharge method: centrifugal discharge
4. Grinding and dispersion structure: Rod pin type
5. Cooling method: The grinding barrel is cooled by double-layer cooling water circulation, and the machine seal coolant circulates Cooling
6. Control system: independent control of human-machine interface, with material temperature, pressure control, cooling water temperature; mechanical seal Liquid level pressure, temperature, liquid level control; real-time monitoring of motor temperature;
7. Sound and light prompts: When a sensor detects an abnormality in the grinder, the grinder will stop running, the sound and light alarm will alarm, and the human-machine interface will Detailed alarm information is prompted
8. Grinding chamber: inner cylinder silicon carbide
9. Features: narrow particle size distribution, high efficiency, ultra-low energy consumption
| Model / Parameter | Motor power (Kw) | Grinding chamber volume (L) | Grinding media (mm) | feed flow (L/h) | Weight (kg) |
| NCP-6 | 11 | 6 | 0.2-2.0 | 300 | 800 |
| NCP-15 | 22 | 15 | 0.2-2.0 | 800 | 2500 |
| NCP-30 | 45 | 30 | 0.2-2.0 | 1200 | 2800 |
| NCP-60 | 90 | 60 | 0.2-2.0 | 3000 | 4500 |
| NCP-150 | 132-160 | 150 | 0.2-2.0 | 4000 | 6500 |
| NCP-300 | 315-355 | 300 | 0.2-2.0 | 5000 | 8000 |
| NCP-400 | 315-355 | 400 | 0.2-2.0 | 6000 | 9500 |
| NCP-1000 | 650 | 1000 | 0.2-2.0 | 12000 | 11000 |
