Name: NCT Series Nano Ceramic Turbine Sand Mill
Brand: Dongguan Infor Machinery Technology Co., Ltd.

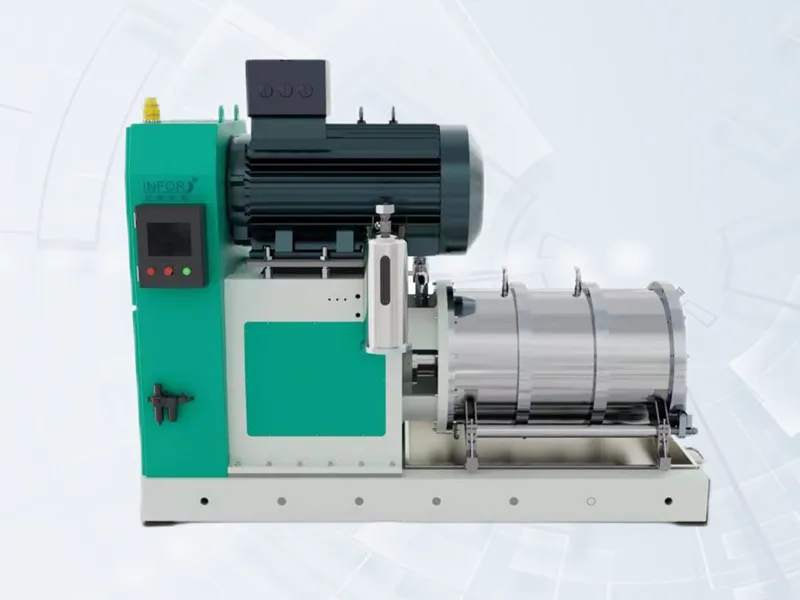

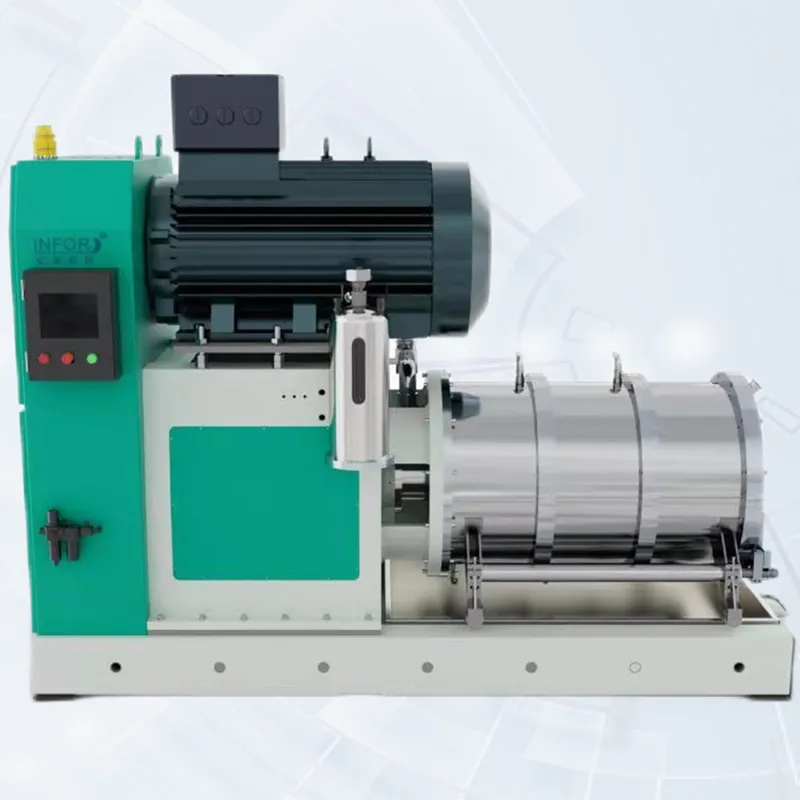

NCT Series Nano Ceramic Turbine Sand Mill

It is suitable for fine grinding of various new nanomaterials. It is the most ideal model in the electrode material industry. Its unique discharging method ensures the quality and stability of the product.

For materials with medium and high viscosity, it has considerable advantages. The discharge screen is placed at the tail, which solves the problem of easy clogging and difficult cleaning when discharging. The entire grinding chamber is easy to disassemble and clean.

Features of NCT Series Nano Ceramic Turbine Sand Mill

1. Using permanent magnet synchronous motor/three-phase asynchronous motor

2. Special turbine optimization design gives the grinding beads in the grinding chamber greater kinetic energy

3. Grinding chamber design using ceramic structural parts, no pollution, Improve material purity

4. The grinding cylinder is cooled by double-layer cooling water circulation, and the machine seal coolant is circulated and cooled

5. It adopts independently developed high-performance double-end mechanical seal, which is safe, reliable and leak-free

6. When a sensor detects an abnormality in the grinder, the grinder stop running, And the sound and light alarm will sound the alarm, and detailed alarm information will be prompted on the human-machine interface

7. Using PLC intelligent detection and control system, the operating status of the equipment is clear at a glance

8. Narrow particle size distribution, high efficiency, ultra-low energy consumption

Model / Parameter	Motor power (Kw)	Grinding chamber volume (L)	Minimum production batch (L)	Cooling water consumption (㎡/h)	Dispersing shaft speed (r/min)	Weight (kg)
NCT-90	90	90	150	3-6	0-750	4500
NCT-150	132	150	300	5-8	0-700	6500
NCT-400	315	400	800	20-25	0-400	7000
